In industrial digital printing, 2.5D printing (also known as textured or tactile UV printing) bridges the gap between flat 2D graphics and full 3D manufacturing. By layering UV-curable inks on flat or rigid substrates, 2.5D printing creates raised, touchable textures without altering the underlying object's structural shape.
This process transforms flat visuals into high-value tactile experiences, offering print providers a high-margin alternative to conventional flatbed output.
How 2.5D UV Printing Works
Unlike conventional digital printing—which deposits a thin color layer measured in microns—2.5D printing relies on controlled ink accumulation and instant curing.
Layer-by-Layer Stacking: The printer repeatedly deposits high-density White ink or Clear Varnish over designated vector or bitmap paths.
Instant UV-LED Curing: Each pass is immediately solidified by UV-LED lamps. Rapid polymerization prevents ink spread, bleeding, or absorption, building crisp physical height.
Grayscale Depth Mapping: Modern RIP software translates image brightness and darkness into height coordinates. Lighter grayscale values dictate thicker ink build-up, creating fluid, organic relief gradients rather than harsh, stepped ridges.
Key Industrial Applications
2.5D UV printing replaces slow, costly mechanical embossing and CNC engraving across multiple manufacturing sectors:
Architectural & Interior Decor: Produces realistic wood grain panels, faux brick walls, and stone textures directly on boards. Eliminates physical embossing dies and supports custom, low-volume runs without tooling costs.
Fine Art Reproduction: Recreates oil painting brushstrokes, ink-wash textures, and canvas depth. Digitally mirrors original artist technique with 100% batch-to-batch consistency.
Signage & Wayfinding: Prints raised lettering, ADA-compliant braille, and dimensional logos directly onto rigid substrates, drastically reducing manual laser cutting and assembly labor.
Custom Packaging & Luxury Gifts: Adds embossed brand logos and decorative textures to perfume boxes, wine bottles, and phone cases. Ideal for instant short-run production and personalized fulfillment.
Key Business & Operational Advantages
Adopting 2.5D textured printing delivers significant production efficiencies for print shops and manufacturing facilities:
Zero Tooling or Mold Costs: Eliminates the need for physical molds, embossing cylinders, or routing bits.
On-Demand & Short-Run Capability: Production starts from a single piece ($MOQ = 1$), making personalized and short-run production highly profitable.
Streamlined Workflow: Graphic files are updated directly in software without setting up secondary post-processing machinery.
Higher Profit Margins: Tactile products command premium market pricing compared to standard flat prints.
Technical Limitations & Considerations
While 2.5D UV printing excels at low-profile reliefs and micro-textures, it is subject to specific physical constraints:
Height Limitations: Ink stacking is optimized for low-to-medium relief heights (typically up to a few millimeters). Excessive layering increases ink consumption and print time.
Structural Geometry: The technology creates surface-level texture on solid bases; it cannot produce hollow, overhang, or suspended 3D geometries.
2.5D UV printing provides an efficient balance of visual depth, tactile quality, and low setup cost. By converting standard flatbed runs into dimensional, tactile products, digital print providers can unlock new market opportunities across industrial decor, luxury packaging, and custom signage.
View More
Why Does Your Small UV Flatbed Printer Keep Producing White Lines?
2026-09-16
.gtr-container-f7e2d9 {
font-family: Verdana, Helvetica, "Times New Roman", Arial, sans-serif;
color: #333;
line-height: 1.6;
padding: 15px;
box-sizing: border-box;
}
.gtr-container-f7e2d9 p {
font-size: 14px;
margin-bottom: 1em;
text-align: left;
}
.gtr-container-f7e2d9 strong {
color: #FF7700;
}
.gtr-container-f7e2d9 h2 {
font-size: 18px;
font-weight: bold;
color: #FF7700;
margin-top: 1.5em;
margin-bottom: 0.8em;
}
.gtr-container-f7e2d9 ul {
list-style: none !important;
padding-left: 25px !important;
margin-bottom: 1em;
}
.gtr-container-f7e2d9 ul li {
position: relative !important;
margin-bottom: 0.5em !important;
font-size: 14px !important;
text-align: left !important;
list-style: none !important;
}
.gtr-container-f7e2d9 ul li::before {
content: "•" !important;
color: #FF7700 !important;
position: absolute !important;
left: -20px !important;
font-size: 1.2em !important;
line-height: 1 !important;
}
.gtr-container-f7e2d9 .gtr-table-wrapper {
width: 100%;
overflow-x: auto;
margin-bottom: 1em;
}
.gtr-container-f7e2d9 table {
width: 100% !important;
border-collapse: collapse !important;
border-spacing: 0 !important;
margin: 0 !important;
font-size: 14px !important;
table-layout: auto !important;
}
.gtr-container-f7e2d9 table th,
.gtr-container-f7e2d9 table td {
border: 1px solid #cccccc !important;
padding: 10px 12px !important;
text-align: left !important;
vertical-align: top !important;
word-break: normal !important;
overflow-wrap: normal !important;
}
.gtr-container-f7e2d9 table th {
background-color: #ffe0b2;
font-weight: bold !important;
color: #333 !important;
}
.gtr-container-f7e2d9 table tr:nth-child(even) {
background-color: #fff3e0;
}
.gtr-container-f7e2d9 table strong {
color: #333;
}
@media (min-width: 768px) {
.gtr-container-f7e2d9 {
padding: 20px 30px;
}
.gtr-container-f7e2d9 h2 {
font-size: 20px;
}
.gtr-container-f7e2d9 table {
table-layout: fixed !important;
}
}
White horizontal lines—commonly known as banding—are one of the most frustrating quality issues when operating a compact UV flatbed printer. Most noticeable across solid fills and light gradients, these gaps occur when ink droplets fail to form a continuous layer on the substrate.
1. Printhead Condition & Nozzle Health
The Root Cause: UV printheads rely on hundreds of microscopic nozzles firing precise droplets. If nozzles dry out, misfire, or get blocked by micro-air bubbles, unprinted streaks appear along the carriage sweep.
Common Triggers: Ambient light or heat partially curing ink on the nozzle plate, extended idle periods, or air ingress during ink refilling.
Solution: Run a nozzle check pattern. Perform a standard automated nozzle cleaning cycle or a soft manual purge using dedicated UV cleaning fluid to clear air pockets and dried ink.
2. Print Settings & Step Calibration
The Root Cause: Low pass counts create wide spacing between print sweeps, leaving fine gaps between adjacent passes that ink cannot bridge.
Common Triggers: Printing in high-speed draft modes or operating with inaccurate Y-axis step feed calibration.
Solution: Increase the pass count (e.g., shift from 4-pass to 6-pass or 8-pass) and perform a step-calibration routine to ensure precise pass alignment.
3. Surface Tension & Substrate Compatibility
The Root Cause: Substrates with low surface energy (such as untreated acrylic, glass, or dense plastics) cause UV ink droplets to bead up rather than spread evenly.
Common Triggers: Poor ink wetting prevents adjacent droplets from coalescing before UV curing, resulting in fine pinholes or white streaks.
Solution: Clean the substrate surface with isopropyl alcohol (IPA) or apply a dedicated UV adhesion primer prior to printing to increase surface energy.
4. Mechanical Wear & Carriage Instability
The Root Cause: Microscopic hardware vibrations or positional deviations distort ink drop trajectory during fast carriage movement.
Common Triggers: Dust on the optical encoder strip, unlubricated linear guide rails, or slack in timing belts and lead screws.
Solution: Wipe down the encoder strip with a lint-free cloth, re-grease motion rails, and inspect belt tension to eliminate physical wobble.
Troubleshooting Matrix
Step
Focus Area
Diagnostic Action
Corrective Measure
1
Nozzle Health
Print a nozzle test pattern.
Perform head cleaning or purge air pockets if channels are missing.
2
Print Parameters
Check pass count & speed settings.
Switch to a higher pass mode and re-calibrate Y-axis feed stepping.
3
Substrate Prep
Inspect ink wetting on the surface.
Degrease substrate with IPA or apply a specialized UV primer.
4
Hardware Motion
Check guide rails & encoder strip.
Clean the encoder strip, grease linear rails, and tighten drive belts.
View More
How Much Does an Industrial 60cm DTF Transfer Really Cost? Per Square Meter Breakdown
2026-09-09
.gtr-container-xyz123 {
font-family: Verdana, Helvetica, "Times New Roman", Arial, sans-serif;
color: #333;
line-height: 1.6;
padding: 15px;
box-sizing: border-box;
}
.gtr-container-xyz123 p {
font-size: 14px;
margin-bottom: 1em;
text-align: left;
}
.gtr-container-xyz123 strong {
font-weight: bold;
}
.gtr-container-xyz123 h3 {
font-size: 18px;
font-weight: bold;
color: #FF7700;
margin-top: 2em;
margin-bottom: 1em;
border-bottom: 2px solid #FF7700;
padding-bottom: 5px;
}
.gtr-container-xyz123 table {
width: 100%;
border-collapse: collapse !important;
margin-bottom: 20px;
font-size: 14px;
border: 1px solid #e0e0e0 !important;
}
.gtr-container-xyz123 table th,
.gtr-container-xyz123 table td {
padding: 12px 15px !important;
border: 1px solid #e0e0e0 !important;
text-align: left !important;
vertical-align: top !important;
word-break: normal !important;
overflow-wrap: normal !important;
}
.gtr-container-xyz123 table thead th,
.gtr-container-xyz123 table thead td {
background-color: #fff3e0;
font-weight: bold;
color: #FF7700;
}
.gtr-container-xyz123 table tbody tr:nth-child(even) {
background-color: #f9f9f9;
}
.gtr-container-xyz123 ul {
list-style: none !important;
padding-left: 25px !important;
margin-bottom: 1em;
}
.gtr-container-xyz123 ul li {
position: relative;
margin-bottom: 0.5em;
padding-left: 15px;
font-size: 14px;
list-style: none !important;
}
.gtr-container-xyz123 ul li::before {
content: "•" !important;
position: absolute !important;
left: 0 !important;
color: #FF7700;
font-size: 1.2em;
line-height: 1;
}
.gtr-container-xyz123 .gtr-table-wrapper {
overflow-x: auto;
margin-bottom: 20px;
}
@media (min-width: 768px) {
.gtr-container-xyz123 {
padding: 20px;
}
.gtr-container-xyz123 h3 {
font-size: 20px;
}
}
For commercial print shops and machinery distributors, calculating the exact cost per square meter ($/m^2$) is essential for setting competitive market pricing and evaluating machine ROI. Here is a precise breakdown of consumables, material yield, and operational overhead for an industrial 60cm roll-to-roll DTF line.
1. Direct Consumable Costs per Square Meter
A standard DTF transfer requires three core consumables: PET transfer film, textile pigment ink, and TPU hot-melt powder.
Consumable
Usage per m2
Estimated Cost
PET Transfer Film
$1.0\ m^2$
~$0.80 – $1.20 / $m^2$
CMYK + White Ink
$15 – 20\ ml$
~$0.60 – $0.90 / $m^2$
TPU Powder
$15 – 20\ g$
~$0.20 – $0.35 / $m^2$
Total Consumable Baseline
1 $m^2$ Transfer
~$1.60 – $2.45 / $m^2$
PET Roll Film: Using 60cm master roll media keeps baseline film costs low while enabling continuous, unattended feeding.
CMYK + White Ink: Bulk ink supply systems ensure fluid delivery to high-resolution printheads, lowering the purchase cost per milliliter for dense white-layer backing.
TPU Hot-Melt Powder: Automated powder shakers distribute powder evenly across prints and automatically recycle unattached powder, minimizing waste.
2. Maximizing Yield with Gang Sheets
Unit costs depend heavily on effective media utilization.
The 60cm Golden Width Advantage: A 60cm continuous roll allows production teams to design dense Gang Sheets. Operators can combine oversized back graphics, chest logos, sleeve designs, and wash tags into a single continuous print job, driving material waste down to under 5%.
3. Labor & Operational Overhead
A complete TCO (Total Cost of Ownership) evaluation accounts for daily running overhead:
Labor Output Ratio: An automated 60cm DTF system (Printing $\rightarrow$ Powder Shaking $\rightarrow$ Tunnel Baking $\rightarrow$ Auto Rewinding) enables a single operator to manage multiple units simultaneously, yielding $15 – 25\ m^2/hr$.
Built-In Fume Extraction Savings: Integrated multi-stage purifiers operate on the machine's primary power source, eliminating the added energy costs, extra ducting, and floor-space overhead associated with separate external filtration units.
Establishing a baseline consumable cost of ~$1.60 – $2.45 per square meter allows garment manufacturers and distributors to protect profit margins, offer competitive unit pricing, and expand into high-margin B2B transfer film distribution.
View More
Behind the A3 Desktop Hype: Why Industrial 60cm DTF Systems Remain the Ultimate Profit Engine for Apparel Manufacturers
2026-09-02
.gtr-container-xyz123 {
font-family: Verdana, Helvetica, "Times New Roman", Arial, sans-serif;
color: #333;
line-height: 1.6;
padding: 15px;
max-width: 100%;
box-sizing: border-box;
}
.gtr-container-xyz123 p {
font-size: 14px;
margin-bottom: 1em;
text-align: left;
}
.gtr-container-xyz123 h3 {
font-size: 18px;
font-weight: bold;
color: #FF7700;
margin-top: 1.5em;
margin-bottom: 0.8em;
line-height: 1.3;
}
.gtr-container-xyz123 strong {
color: #FF7700;
}
.gtr-container-xyz123 ul {
list-style: none !important;
padding-left: 25px !important;
margin-bottom: 1em;
}
.gtr-container-xyz123 ul li {
position: relative !important;
margin-bottom: 0.5em !important;
font-size: 14px !important;
text-align: left !important;
padding-left: 10px !important;
list-style: none !important;
}
.gtr-container-xyz123 ul li::before {
content: "•" !important;
color: #FF7700 !important;
position: absolute !important;
left: 0 !important;
font-size: 1.2em !important;
line-height: 1 !important;
}
@media (min-width: 768px) {
.gtr-container-xyz123 {
padding: 25px;
}
.gtr-container-xyz123 h3 {
margin-top: 2em;
margin-bottom: 1em;
}
}
Desktop A3 DTF printers have swept the market by lowering the entry barrier with compact footprints and minimal initial capital expenditure. For small studios and startup print shops, A3 equipment offers an accessible entry point for low-volume sampling.
However, as order volumes surge and market competition intensifies, apparel factories and machinery distributors encounter rigid scaling limits. While A3 setups solve initial testing needs, achieving commercial throughput, cost leadership, and long-term profitability requires an integrated, industrial-grade 60cm roll-to-roll DTF production line.
1. Throughput & Automation: Integrated Drying Tunnels Eliminate Bottlenecks
Desktop A3 operations suffer from severe labor bottlenecks. Frequent manual sheet cutting, tray oven baking, and slow print speeds turn 100+ piece orders into a labor-intensive process.

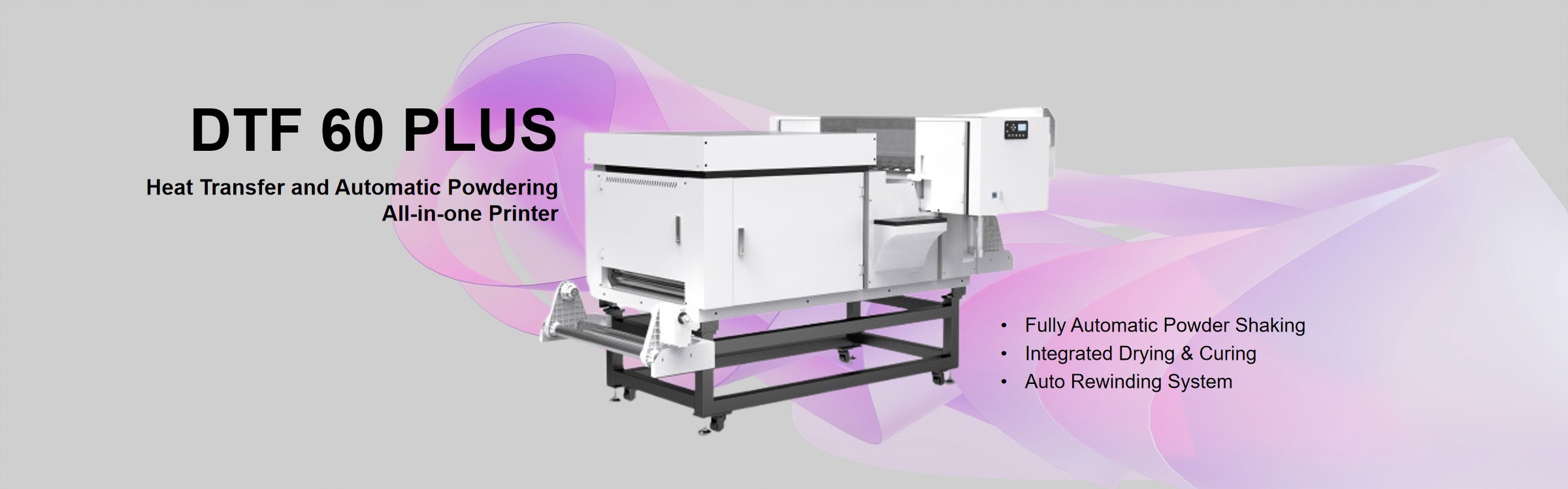

An industrial DTF line integrates automated powder shaking, an inline drying tunnel, and auto-take-up systems. The printed transfer film feeds directly into a continuous drying tunnel featuring long-distance constant-temperature baking and efficient hot-air circulation. This ensures complete TPU powder melting and strong adhesion, eliminating peeling defects caused by uneven baking. Once configured, the system operates unattended 24/7, reducing order delivery times by over 70%.
2. The 60cm Golden Width: Maximum Gang Sheet Efficiency and Reduced Consumable Costs
In digital textile printing, unit cost-per-print directly determines profit margins. The 60cm format represents the ideal width for industrial roll-to-roll transfer production:
Superior Gang Sheet Optimization: A 60cm width accommodates oversized back prints, chest logos, sleeve branding, and small tags on a single continuous film layout, driving film waste down to negligible levels.
Bulk Consumable Savings: Utilizing bulk ink feed systems and 60cm master roll films cuts combined ink and media costs by 30% to 40% compared to A3 cut-sheet media and small ink cartridges.
3. Factory Environment & Compliance: Built-in Heavy-Duty Smoke Purification
Melting TPU powder at 150°C–160°C generates dense fumes, oil residue, and volatile organic compounds (VOCs). Small A3 setups rely on external ducting or standalone fume boxes, which clutter the workspace and degrade indoor air quality.
Industrial 60cm DTF lines feature a built-in heavy-duty smoke purification system:
Space-Efficient All-in-One Design: Internalizing the purifier eliminates external ductwork and extra machinery, preserving valuable floor space inside the production facility.
Environmental & Occupational Health Compliance: Multi-stage filtration (pre-filter, HEPA, and high-capacity activated carbon) purifies fumes internally. This meets strict international indoor air quality and worker safety standards (such as OSHA and CE), preventing secondary purchasing costs and regulatory compliance risks for distributors and factory buyers.
4. Structural Rigidity: Heavy-Duty CNC Frame Built for Continuous Operation
Converted desktop printers utilize lightweight chasses that degrade rapidly under heavy workloads, resulting in frequent recalibrations, downtime, and high maintenance overhead.
Manufactured in our 50,000-square-meter facility, our industrial DTF printers feature heavy-duty structural steel frames and precision CNC-machined sheet metal. Equipped with high-precision linear guide rails, negative-pressure ink systems, and temperature-controlled platens, these units maintain micro-level ink drop accuracy and strict color consistency across multi-day production runs.
Desktop A3 DTF printers played a vital role in educating the market. However, when transitioning from initial sampling to high-volume commercial production, upgrading to an industrial 60cm DTF line—complete with an inline drying tunnel and built-in smoke purification—is an essential investment. It delivers the operational reliability, cost efficiency, and output quality required to command market share and protect long-term margins.
View More
From Sketch to Shipment: A 5-Step Guide to Customizing Your Private-Label Printer
2026-08-25
.gtr-container-oem-x7y2z9 {
font-family: Verdana, Helvetica, "Times New Roman", Arial, sans-serif;
color: #333;
line-height: 1.6;
padding: 20px;
box-sizing: border-box;
max-width: 900px;
margin: 0 auto;
}
.gtr-container-oem-x7y2z9 p {
font-size: 14px;
margin-bottom: 1em;
text-align: left !important;
word-break: normal;
overflow-wrap: normal;
}
.gtr-container-oem-x7y2z9 strong {
font-weight: bold;
}
.gtr-container-oem-x7y2z9 .gtr-section-title {
font-size: 18px;
font-weight: bold;
color: #FF7700;
margin-top: 2em;
margin-bottom: 1em;
position: relative;
padding-left: 30px;
}
.gtr-container-oem-x7y2z9 .gtr-section-title::before {
content: "";
position: absolute;
left: 0;
top: 50%;
transform: translateY(-50%);
width: 20px;
height: 3px;
background-color: #FF7700;
border-radius: 2px;
}
.gtr-container-oem-x7y2z9 ul {
list-style: none !important;
padding: 0 !important;
margin: 0 !important;
}
.gtr-container-oem-x7y2z9 ul li {
position: relative !important;
padding-left: 25px !important;
margin-bottom: 10px !important;
line-height: 1.6 !important;
font-size: 14px;
list-style: none !important;
}
.gtr-container-oem-x7y2z9 ul li::before {
content: "•" !important;
position: absolute !important;
left: 0 !important;
color: #FF7700 !important;
font-size: 18px !important;
line-height: 1.6 !important;
top: 0 !important;
}
.gtr-container-oem-x7y2z9 ul li p {
margin: 0 !important;
padding: 0 !important;
text-align: left !important;
list-style: none !important;
}
@media (min-width: 768px) {
.gtr-container-oem-x7y2z9 {
padding: 30px 40px;
}
.gtr-container-oem-x7y2z9 .gtr-section-title {
font-size: 20px;
margin-top: 2.5em;
margin-bottom: 1.2em;
}
}
Transitioning from a brand reseller to a private-label equipment owner sounds complex if you assume it requires managing factory infrastructure. In reality, partnering directly with a primary equipment manufacturer turns custom hardware production into a streamlined, turnkey process.
By leveraging our engineering resources and internal manufacturing capabilities, you can launch a proprietary line of DTG, DTF, or UV flatbed printers without technical friction. Here is how we bring your custom printer from concept to delivery in five structured steps.
Step 1: Requirement Scoping & 3D CAD Modeling
Every OEM project begins with a clear definition of your market positioning. You select your core machine dimensions (such as 0609 or 1015 formats), printhead configurations, and target performance specs.
Once parameters are locked, our R&D engineering team builds 3D CAD renderings of your machine. This stage allows you to visualize custom chassis designs, structural modifications, and brand color schemes before a single piece of metal is cut.
Step 2: In-House Sheet Metal & CNC Fabrication
Unlike trading intermediaries who rely on third-party suppliers, we manufacture all structural components in-house within our 50,000-square-meter facility.
Using fiber laser cutters, high-precision CNC machining centers, and automated bending machinery, we fabricate heavy-duty sheet metal frames built specifically for your model. This control ensures industrial-grade rigidity, micro-level printhead alignment, and long-term chassis stability.
Step 3: Firmware & Software Identity Integration
True private labeling extends deep beneath the surface. We customize the complete user experience to reflect your brand identity:
Hardware Branding: Laser-etched stainless steel logo plates and custom powder-coated chassis colorways.
Firmware Customization: Personalized boot screen animations and branded UI navigation on the machine’s touchscreen control panel.
Software Ecosystem: Customized printer control software and driver interfaces displaying your company name and support contact details.
Step 4: Calibration & Performance Verification
Before shipment, every customized unit undergoes rigorous multi-point quality control. Our technicians calibrate linear guide rails, perform 5pl drop-accuracy tests, and fine-tune localized ICC color profiles for your specified inks and substrates.
We generate live test-print reports and high-resolution video documentation for your review prior to final packing.
Step 5: Neutral Packaging & Blind Shipping
Protecting your customer base and supply chain origins is paramount. Every completed order is sealed in 100% unbranded, neutral wooden crates accompanied by white-label documentation. Backed by strict bilateral NDAs, we ensure our factory identity remains entirely invisible to your end buyers.
Building a proprietary equipment brand does not require capital expenditure or factory management. Contact our OEM engineering team today to submit your logo and request your first custom 3D machine mockup.
View More
